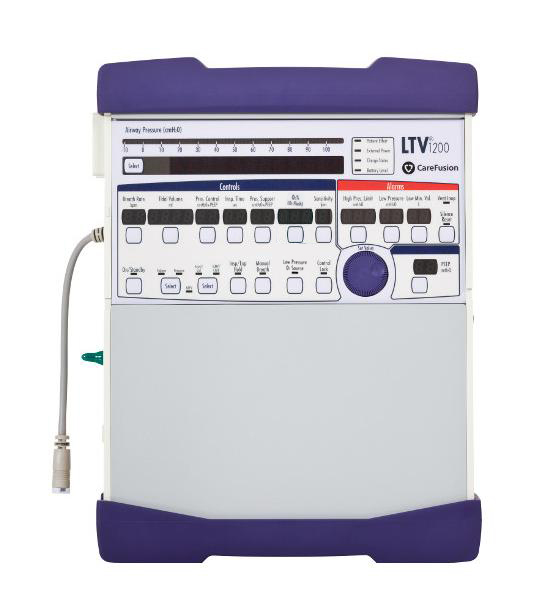

LTV1200


The LTV® 1200 is a small, lightweight ventilator that provides sophisticated critical care ventilation in a variety of environments.  The ventilator supports both invasive and noninvasive applications. It combines portability, impact-resistant construction, easy-to-read displays and comprehensive monitoring. A single solution for any patient weighing 5 kg or more, the LTV® 1200 ventilator weighs only 14.5 lbs and is a pick-up-and go solution that can travel with patients from field care transport to the intensive care unit. It can be powered with any 12-volt power source from cigarette lighters to outlets – and its internal battery allows it to be transferred from one power source to the next without interruption.

The O2 Conserve feature reduces the O2 consumption when the time and place of care require it. The feature helps extend the sometimes scarce resource of O2 during transport or emergencies and may be turned off when O2 resources are again in full supply.

The LTV® 1200 ventilator can be custom-configured with a wide range of accessories to meet the needs of demanding care environments

The LTV® 1200 ventilator with SprintPack Lithium-Ion Power System is equipped with advanced technology designed to empower its users with comfort, confidence, and convenience. Lithium-Ion technology provides the greatest degree of power density in the lightest weight package of any battery type. This provides LTV® 1200 ventilator users longer battery power in a smaller and lighter package. The SprintPack Lithium-Ion Power System also provides a higher number of full recharging cycles that the extend the battery life to provide greater long-term value.

Physical specifications:

  • Weight: 14.5lbs
  • Height: 3.25”
  • Width: 10.5”
  • Depth: 13.5”

Variable Alarms:

  • Apnea Interval: 10-60 seconds
  • High Pressure Limit: 5 to 100 cmH20
  • Low Peak Pressure: Off, 1 to 60 cmH20
  • Low Minute Volume:  Off, 0.1 to 99 L
  • High PEEP: Off, 3 to 20 cmH20 above set PEEP
  • Low PEEP: Off, -3 to -20 cmH20 below set PEEP
  • High Rate: Off, 5 to 80 BPM
  • Alarm Volume: 60 to 85 dBA
